Ⅰ. Product Overview

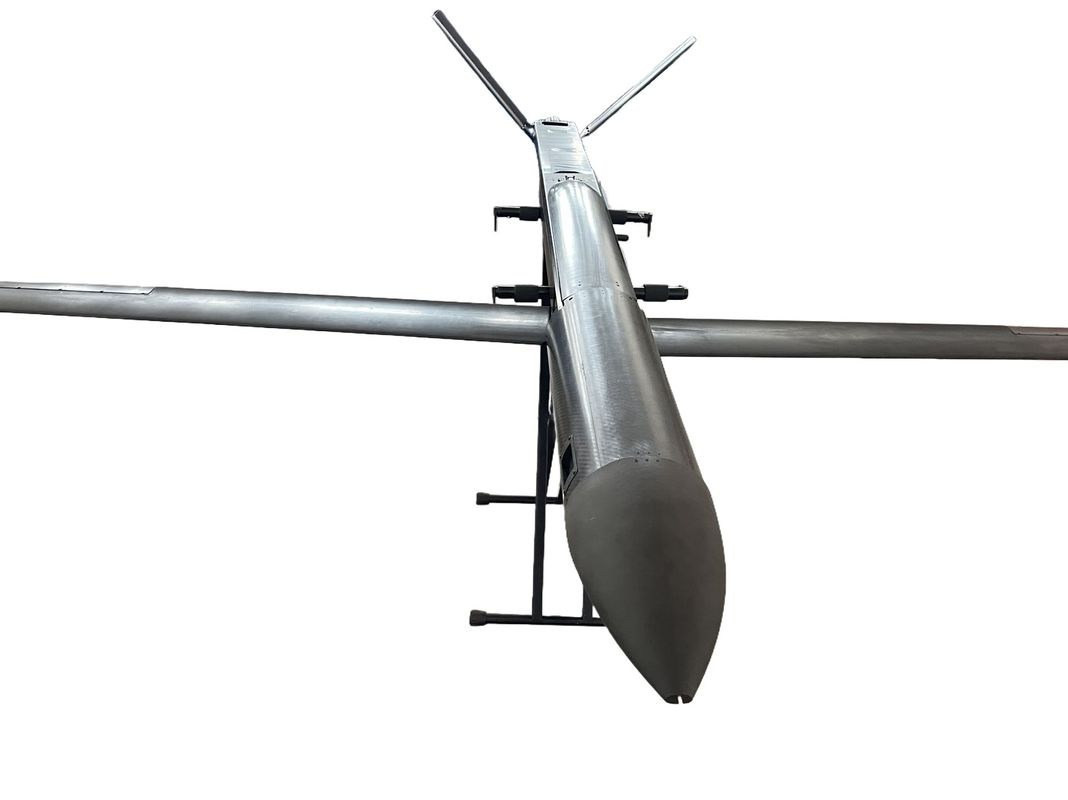

The 20 kg-class loitering munition is an integrated storage–transport–launch, long-range precision weapon system. Gas-ejected from a sealed tube with no runway required, it is rapidly deployable. Dual-mode satellite & image guidance enables 100 km stand-off range and 90 min endurance, delivering precise strikes against heavy armor and high-value fixed installations.
Ⅱ. Product Highlights
1. Stand-off strike: 100 km radius keeps launch platform outside enemy fire.
2. Extended loiter: 90 min on station to wait for optimal attack timing.
3. Dual-mode precision: satellite mid-course + image terminal guidance; ≥70 % hit rate on moving targets, ≤1 m CEP on static targets.
4. High-penetration warhead: 5 kg shaped charge defeats 100 mm/68° RHA with ≥80 % probability or ≥600 mm C40 reinforced concrete; lethal radius ≥20 m.
5. Real-time datalink: L-band 100 km video & data link supports man-in-the-loop confirmation.
Ⅲ. Product indicators
|
Parameter
|
Value
|
|
Take-off weight
|
20 kg
|
|
Flight speed
|
100–160 km/h
|
|
Service ceiling
|
5 000 m
|
|
Battery
|
High-density Li-ion secondary (>250 Wh/kg)
|
|
Guidance
|
Mid-course: GNSS; Terminal: imaging
|
|
Max loiter time
|
90 min
|
|
Datalink
|
L-band video & data 100 km
|
|
Operational radius
|
100 km
|
|
Recon/Seeker
|
Gimballed IR/EO dual-mode
|
|
Warhead
|
5 kg HEAT; ≥80 % vs 100 mm/68° RHA
|
|
Concrete penetration
|
≥600 mm C40 reinforced concrete
|
|
Lethal radius
|
≥20 m
|
|
Accuracy (static)
|
CEP ≤1 m
|
|
Accuracy (moving)
|
≥70 % vs 4.6 m×2.3 m×2.3 m target at ≤30 km/h
|
|
Wind resistance
|
Beaufort scale 6
|
Ⅳ. Key Features
All-in-one tube: sealed container doubles as launcher—open and fire, minimal logistics.
Multi-platform: rapid integration on vehicles, vessels, or UAV motherships.
Low observability: low radar/IR signature, 5 000 m ceiling, operates in 6-grade wind.
Man-in-the-loop: real-time video feed allows operator to abort or re-target.
Modular maintenance: seeker, warhead, and battery are field-replaceable, reducing downtime.
