Ⅰ. Product Overview

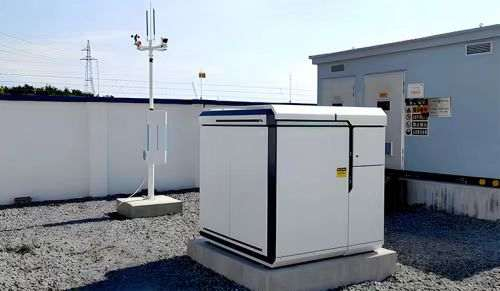

This system is a ground infrastructure for unmanned aerial vehicles (UAVs) designed for urban scenarios, with a small garage size of 2.8 m × 1.8 m × 1.6 m. It can be quickly deployed on rooftops and parking lots, providing automatic charging, battery swapping, data archiving, and AI scheduling for UAVs weighing ≤ 50 kg with multiple rotors/VTOL.
Equipped with AI dynamic scheduling system and smart city interface to meet the low altitude service needs of cities and improve urban management efficiency. By deeply integrating with smart city systems, the optimization and efficient utilization of drone resources can be achieved, providing strong support for urban governance.
Ⅱ. Key Features
- Temperature range -40 °C to +70 °C, humidity 5 % – 95 % RH
- 15 kW roof-mounted solar array with 20 kWh LiFePO₄ buffer
- Robotic arm changes battery and sensor within 3 min
- Local encrypted storage, 5 G / SATCOM dual link, AES-256
- Footprint 5 m², anchors to standard parking space, no civil works
Ⅲ. Customer Benefits
1. Reduces field crew by 60 %, triples daily sortie rate.
2. OCPP-compatible charger lowers electricity cost 25 %.
3. Modular panels allow 24 h expansion or relocation.
Ⅳ. Technical Data
|
Item
|
Value
|
|
External dimensions
|
2.8 m × 1.8 m × 1.6 m
|
|
Internal clear volume
|
6 m³
|
|
Maximum drone MTOW
|
50 kg
|
|
Battery swap time
|
≤ 3 min
|
|
Temperature range
|
-40 °C to +70 °C
|
|
Power supply
|
15 kW solar + 20 kWh buffer
|
|
Communication
|
5 G / SATCOM dual link
|
|
Data security
|
AES-256 local encryption
|
|
Footprint
|
5 m²
|
|
Wind / rain
|
Level 10 / IP55
|
|
Setup time
|
4 h (two persons no crane)
|
Ⅴ. Project Presentation
